48V Power Wall DA-PW48100AH

48V Power Wall-mounted LiFePO4 Battery
48V/51.2V Power Wall-mounted LiFePO4 battery, designed for residential energy storage, stylish and simple in appearance, Supports wall-mounted installation.



Basic ParametersDA-PW48100AHCharge Voltage(V)52.5-53.5
Nominat Voltage(V)51.2VCommunication PortRS485,CAN
Nominal Capacity(Ah))100AhWorking Temperature(°C)-20°C-60°C
Energy(Wh)5120WhDesign life10+Years(25℃/77′”F)
Dimension(mm)L501×W452×H155Cycle Life>3000-6000(25℃/77′”F)
Weight(Kg)47Maximum continuous charge current100A
Discharge Voltage(V)45-53.5Maximum continuous discharge current100A

48V Power Wall DA-PW48100AH visible benefits:

1,Light weight, Small size.
2,Long cycle life, using high-quality LiFePO4 Cells, the cycle life is as high as 6000 times.
3,Intelligent battery management system.
4,Support a variety of communication protocols, support RS485, RS232, CAN etc.
5,Compatible with a variety of inverter.
6,In the extreme performance safety test, the battery will not catch fire, explode, leak, and be safer to use.

Frequently Asked Questions

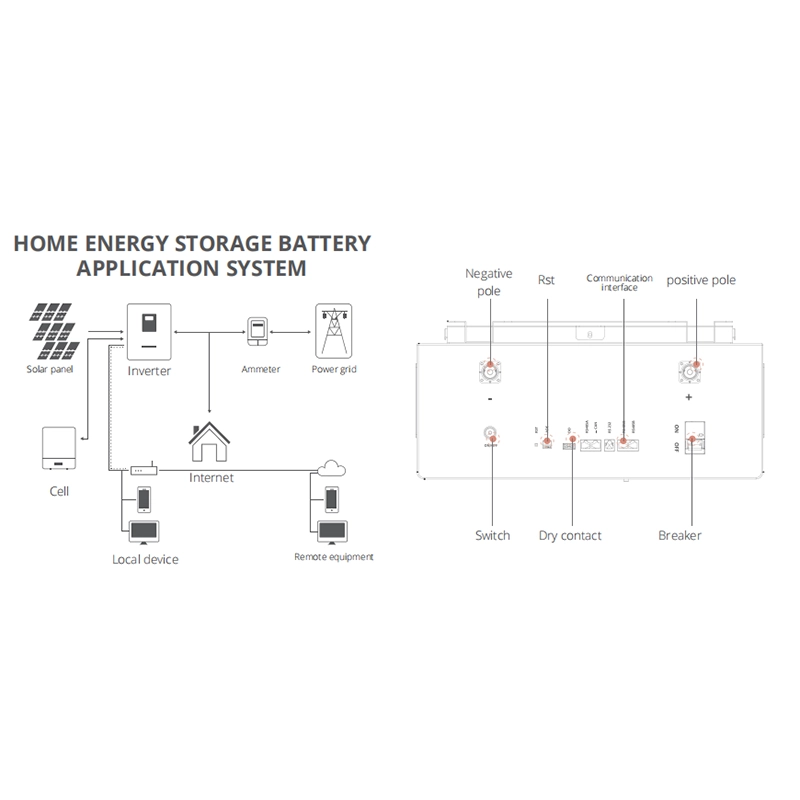

How do household batteries work?

The answer is simple, a home battery system stores electricity so you can use it at other times. A household’s energy needs are not at the same level throughout the day, especially when some or nobody’s at home. It means that at certain times of the day, the power generated by the solar panels is not being fully utilized. Of course, when the sun goes down or the weather is particularly bad, solar photovoltaics cannot generate electricity, and electricity needs to be drawn from the grid to supply power to the home. Home battery means you can store solar energy for use before you need to draw power from the grid.

What is battery energy storage?

A battery energy storage system is a rechargeable battery system that stores energy from a solar array or grid and provides that energy to a home or business. Because they contain advanced technologies not found in ordinary batteries, they can easily perform certain tasks that used to be difficult or impossible, such as peak shaving and load shifting.

What type of home battery backup system do you need?

Backup battery systems are typically charged by utility grid power or solar power. If you live in a sunny area, then consider using solar power to charge your batteries during the day. Or, if your outages are infrequent, consider using electricity to charge your batteries when it’s less expensive.

How much load does your battery backup system need?

You need to carefully consider your peak load in kilowatt-hours per day when calculating how much battery power you need. If your energy needs are low – such as lighting – then most backup systems will be able to handle it. However, if you need to run items such as sump pumps, air conditioners or restart loads, then you also need to account for peak loads.

What is your warranty?

DALithium offer 10 years warranty for Household Energy Storage System LiFePO4 battery . we ensure at least 5,000 cycle life for the LiFePO4 battery pack, which means, after 5000 cycle 100% DOD, there will still around 80% capacity left. It can be used for at least 10 years with normal charging once a day.
